GO – GOC – grilli omega

COEFFICIENTE DI SICUREZZA: 6:1

GO – Perno filetto

CODICE PORTATA KG PESO KG
GO03 1000 0.17
GO04 1500 0.25
GO05 2000 0.44
GO06 3250 0.79
GO07 4750 1.26
GO09 6500 1.88
GO10 8500 2.78
GO11 9500 3.87
GO12 12000 5.26
GO13 13500 6.94
GO14 17000 8.79
GO15 25000 15.00
GO16 35000 20.65
GO17 55000 41.00

GOC – Dado coppiglia

CODICE PORTATA KG PESO KG
GOC04 1500 0.25
GOC05 2000 0.44
GOC06 3250 0.79
GOC07 4750 1.26
GOC09 6500 1.88
GOC10 8500 2.78
GOC11 9500 3.87
GOC12 12000 5.26
GOC13 13500 6.94
GOC14 17000 8.79
GOC15 25000 15.00
GOC16 35000 20.65
GOC17 55000 41.00

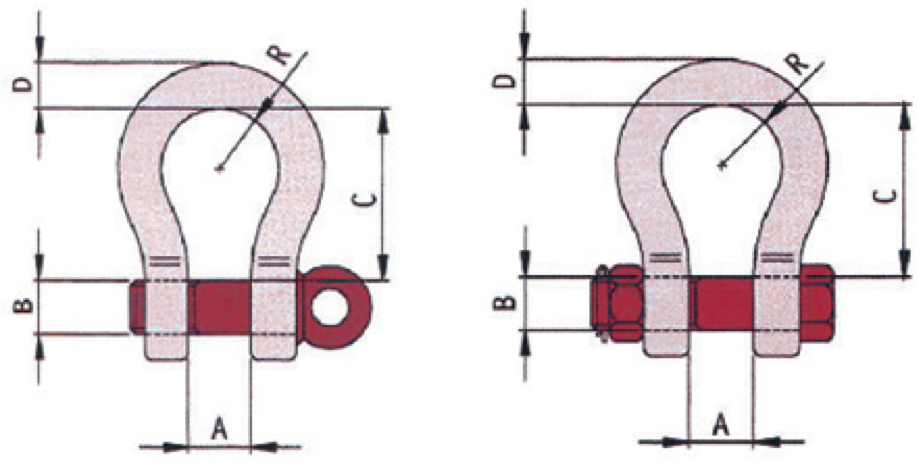

CODICE/CODE A MM B MM C MM D MM R MM
GO03 17 11 36.5 10 26
GO04-GOC04 18.5 12 43 11 29
GO05-GOC05 22 16 51 13.5 32
GO06-GOC06 27 19 64 16 43
GO07-GOC07 31 22 76 19 51
GO09-GOC09 36 25 83 22 58
GO10-GOC10 43 28 95 25 68
GO11-GOC11 47 32 108 28 75
GO12-GOC12 51 35 115 32 83
GO13-GOC13 57 38 133 35 92
GO14-GOC14 60 42 146 38 99
GO15-GOC15 74 50 178 45 126
GO16-GOC16 83 57 197 50 138
GO17-GOC17 105 70 254 65 180
